The dashboard in Filament#

To follow the workflows of a Laravel application from a Filament panel, install gplanchat/durable-filament (Packages) and register the plugin on the panel:

use Gplanchat\Durable\Filament\DurableFilamentPlugin;

$panel->plugin(DurableFilamentPlugin::make());

The panel then shows Durable runs in its navigation. It works on Filament 3 and 4, reads the catalog that gplanchat/durable-laravel binds (in memory, Illuminate or Temporal), and is read-only.

Screenshots#

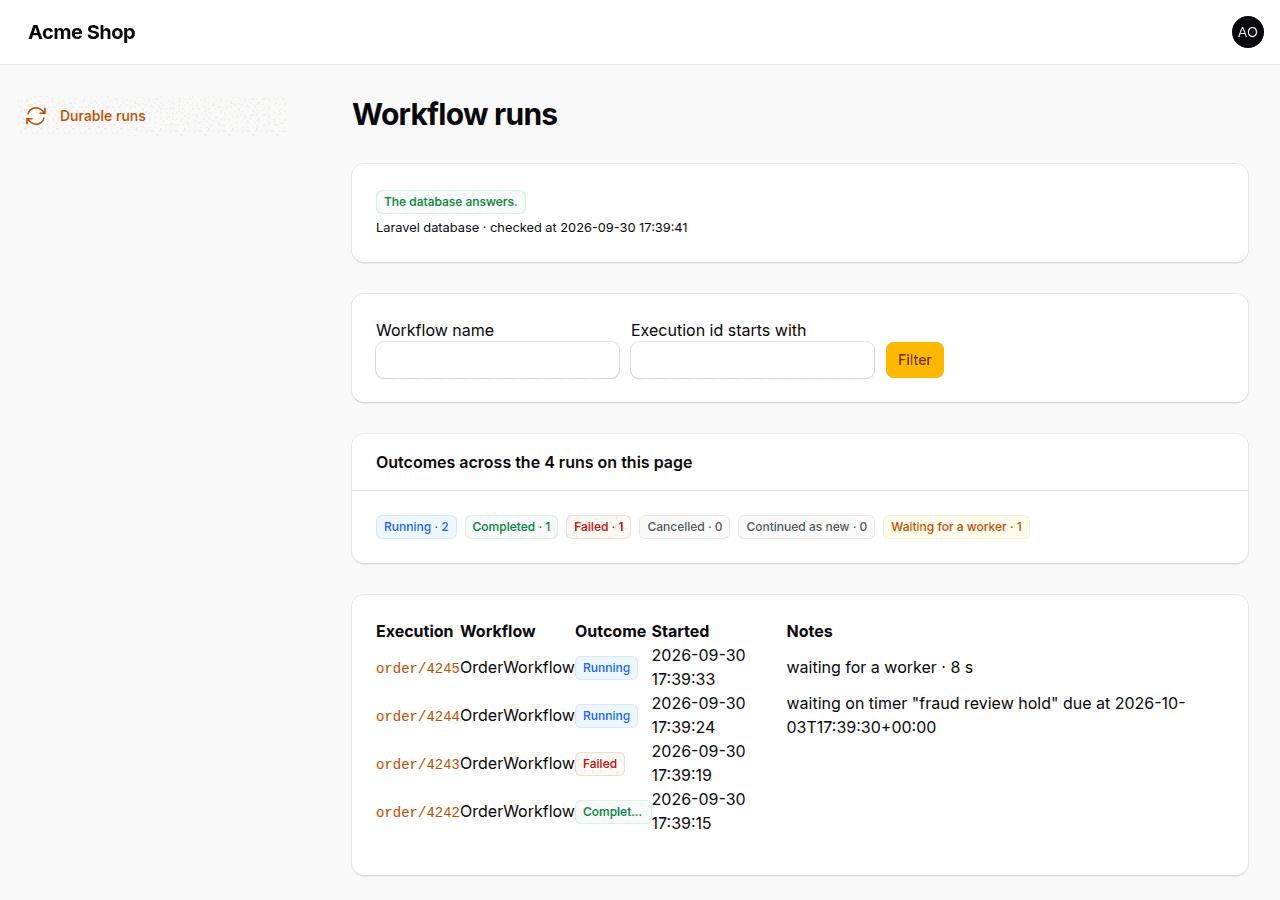

The Filament Durable runs page: backend state, filters, counters per outcome and the list of runs

Durable runs, over four runs of an order workflow. The counters include one run waiting for a worker.

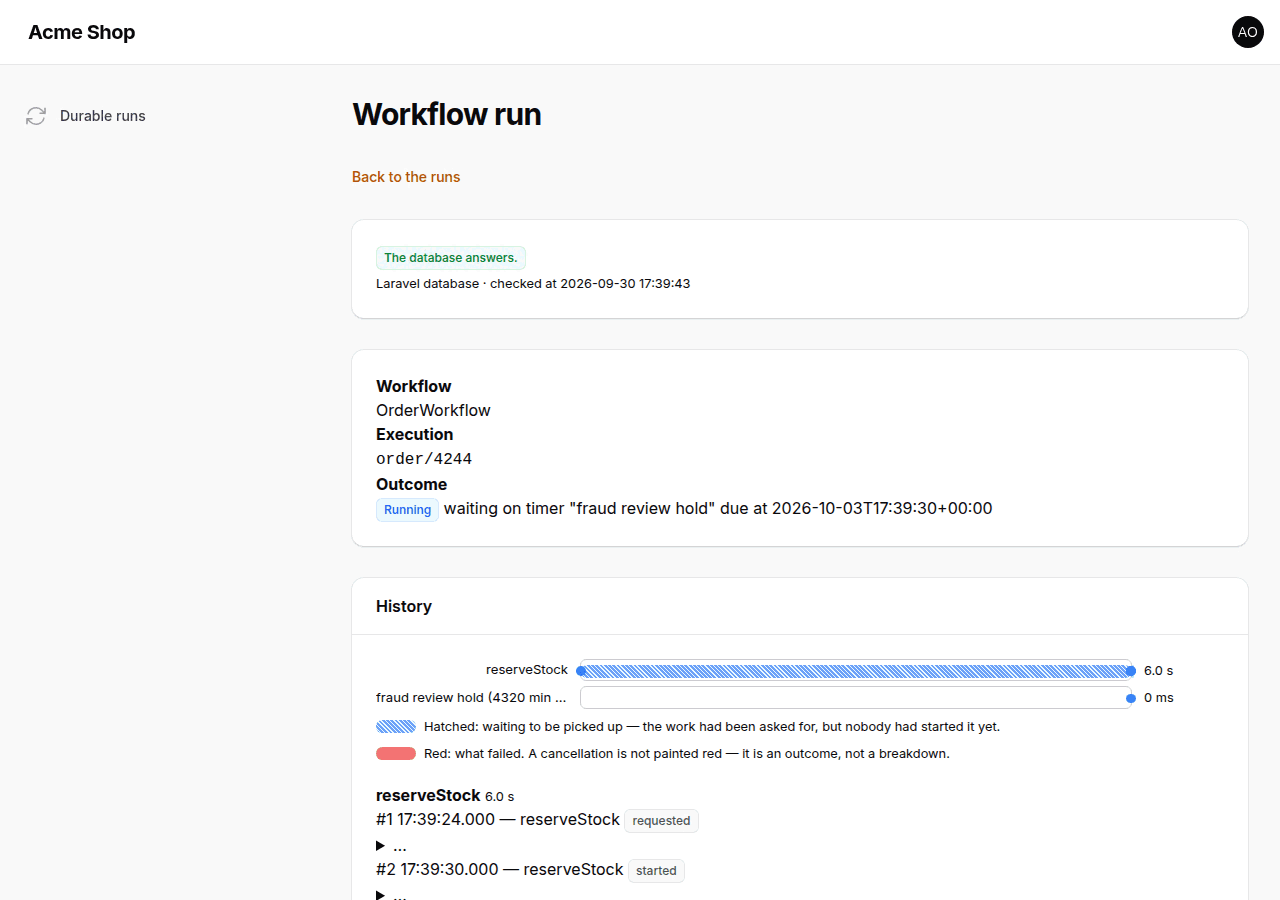

The Filament run page of an execution waiting on a timer, with its History timeline

The run page of order/4244: what it waits on, and a History timeline where reserveStock is hatched for the time it spent in the queue.

What the page offers#

The backend state, dated.
Counters per outcome, with a Waiting for a worker count, over the runs on the page.
Filters on outcome, and on workflow name and execution id prefix where the backend can apply them. The filters stay set from one page to the next.
Worker presence, above the list, on the Temporal backend: for each durable:temporal-worker role, workflow and activity, whether a worker polled its task queue in the last 120 seconds. On the Illuminate backend, the panel reads “Could not ask”: Laravel’s queue keeps no list of the processes that run php artisan queue:work. The in-memory backend runs every task in the process that starts it, and the page shows no panel.
The run list, 20 a page, forward by cursor. Each row carries the execution id (a link to the run), the outcome, the workflow, the start date and a note (waiting for a worker, waiting on …).
A run page, opened from a row: outcome, what it waits on, its Nexus operations where the catalog can list them, and its history, one block per action, under a timeline. See Read a run.

What it does not show#

There is no worker presence row for durable:nexus-worker. See Parity.

Language and payloads#

English and French. A payload unfolds on demand and is masked by what your application binds Gplanchat\Durable\Observation\PayloadRedactorInterface to in the container; the key-name redactor applies otherwise.
